Table

To describe a table chart, use the FlatTable configuration:

• name - your chart's name. Must be unique within the workbook.

• dataset - the ID of the dataset whose data to visualize.

• ad_hoc_fields - (optional) describe the calculated fields to use in the chart:

  • title: the field's title.

  • id - the ID of the calculated field. Must be unique within the dataset.

  • cast - the field's Visualization-specific data type

  • description - (optional) the field's description in plain text format.

  • hidden - (optional) if true, doesn't the field in the dataset's field list. If unspecified, defaults to false.

  • aggregation - applies aggregation to the field.

  • calc_spec - defines the data field specification.

• visualization - describe the configuration of your chart:

  • kind: flat_table - specify the chart type.

  • columns - configure the data reference for the columns. You can define multiple data sources as follows:

    • source - specify the data source:

      • kind: ref - take the data from the reference data source. This is the dataset specified above.

      • id - specify the ID of the data field from the dataset whose data will be used to visualize the Y axis.

  • sort - specify the data field to be used as a sorting reference:

    • source - specify the data source:

      • kind: ref - take the data from the reference data source. This is the dataset specified above.

      • id - specify the ID of the data field from the dataset whose data to use as sorting reference.

    • direction - configure the sorting direction to apply to the chart. You can assign ASC for ascending or DESC for descending.

  • coloring (optional):

    • kind - specify which data type field to use as a color filter. You can specify a dimension or measure.

    • source - specify the data source:

      • kind: ref - take the data from the reference data source. This is the dataset specified above.

      • id - specify the ID of the data field from the dataset whose data will be used as a color filter.

    • palette_id - select the palette to apply to the chart. For most cases, use default-palette.

    • mounts - assign colors from the palette to data points from the source:

      • value - specify the exact value from the source.

      • color_idx - match the above value to a color swatch number in the palette.

- name: ch_flat_table_sales_per_subcategory_per_segment
chart:
   datasets:
   - ds_sales
   ad_hoc_fields: []
   visualization:
      kind: flat_table
      columns:
      - source:
         kind: ref
         id: sub_category
      - source:
         kind: ref
         id: segment
      - source:
         kind: ref
         id: sum_sales
      sort:
      - source:
         kind: ref
         id: sum_sales
      direction: DESC
      coloring: null

To open field settings, click the field type icon before the field name:

• for Integer type fields:

  Name	Description	Possible values
  Name	Sets the name of the measure	A string of characters.
  Type	Sets the field's data type.	Integer, Fractional number, String, Logical, Date, Date and time
  Aggregation	Sets the aggregation type	Not editable for this data type.
  Format	Sets the value display format	Number: display the values as plain numbers. Percent: show the values as a percentage.
  Show delimiter	Toggles the separation of groups of thousands.	Show: display spaces between groups of thousands. Hide: hide spaces between groups of thousands.
  Prefix	Sets a text to display before the value	A string of characters.
  Postfix	Sets a text to display after the value.	A string of characters.
  Units	Sets a rounding scale to apply to the field's values.	Null: don't apply rounding. Auto: select and apply a rounding scale automatically. Thousands, K: round to thousands, display 000 as K. Millions, M: round to millions, display 000 000 as M. Billions, B: round to billions, display 000 000 000 as B. Trillions, T: round to trillions, display 000 000 000 000 as T.
  Linear indicator	Toggles a linear indicator display to represent your data in a graphical form. The Column fill color overrides this setting.	On: displays linear indicators in the column. Off: hides linear indicators in the column.
  Fill type	Selects a color fill type for linear indicators.	One color: displays linear indicators filled with a single color: Color swatch: displays a pop-up to select a pallette and choose one of the predefined colors from it. Input field: allows you to specify an HTML color code . Two colors: displays linear indicators filled with a single color, but colors for positive and negative values are different. The controls are similar as for One color, but these ones are different for the positive and negative values. Gradient: displays linear indicators filled with a gradient. This control displays a dialog window: Gradient type toggles between gradients based on 2 or 3 colors. Drop-down menu selects the gradient color palette. The preview is displayed to the left. The button changes the gradient's direction. Set threshold values allows you to specify threshold values manually, each value will correspond to a color.
  Show labels	Display values on top of linear indicators.	On: show values. Off: hide values.
  Align	Toggles the indicator's starting side. This setting works only if all the values in the column are either positive or negative.	Default: the indicator's zero side is selected automatically. Left: the indicator's zero side is on the left. Right: the indicator's zero side is on the right.
  Scale	Sets the indicator's scale.	Auto: Visualization sets the scale from 0 to the maximum field value. Manual: allows you to manually set the min and max values for the indicators.
  Column fill color	Fills the cells with different colors from a gradient depending on the value. This setting overrides the Linear indicator.	On: apply the color fill. Off: remove color fill.
  By field	Sets the field from which to get the values for the fill color.	Select the field from the drop-down menu.
  Fill type	Selects a color fill type for linear indicators.	Gradient: sets the gradient from which to get the colors depending on the field value.

• for String type fields:

  Name	Description	Possible values
  Name	Sets the name of the dimension	A string of characters.
  Type	Sets the field's data type.	Integer, Fractional number, String, Logical, Date, Date and time
  Aggregation	Sets the aggregation type	No: doesn't apply aggregation. Count: applies the COUNT function to the data field, and shows the total number of entries. Count distinct: applies the COUNTD function to the data field, and returns the number of unique values in the field.
  Column fill color	Fills the cells with different colors from a gradient depending on the value.	On: apply the color fill. Off: remove color fill.
  By field	Sets the field from which to get the values for the fill color.	Select the field from the drop-down menu.
  Fill type	Selects a color fill type for linear indicators.	Palette: displays a pop-up to select a pallette and choose one of the predefined colors from it.

• for Date type fields:

  Name	Description	Possible values
  Name	Sets the name of the data field	A string of characters.
  Type	Sets the field's data type.	Integer, Fractional number, String, Logical, Date, Date and time
  Grouping	Sets the grouping and rounding by time period.	No - doesn't apply grouping. Rounding - rounds the values by Year, Quarter, Month, Week or Day. Date part - returns the number of a time period: Year, Quarter, Month, Week, Day of week, or Day.
  Date mode	Toggles the date display mode.	Continuous - display all the dates continuously. Discrete - show only the dates containing values.
  Aggregation	Applies a selected aggregation function to the data field.	No: doesn't apply aggregation. Count: applies the COUNT function, returns the total number of entries. Minimum: applies the MIN function, returns the minimum value. Maximum: applies the MAX function, returns the maximum value. Count distinct: applies the COUNTD function to the data field, and returns the number of unique values in the field. Average: applies the AVG function, returns the arithmetic mean value.

• for Geodata type fields:

  Name	Description	Possible values
  Name	Sets the name of the data field	A string of characters.
  Type	Sets the field's data type.	Integer, Fractional number, String, Logical, Date, Date and time, Geopoint, Geopolygon
  Aggregation	Sets the aggregation type	No: doesn't apply aggregation. Count: applies the COUNT function to the data field, and shows the total number of entries.
  Column fill color	Fills the cells with different colors from a gradient depending on the value.	On: apply the color fill. Off: remove color fill.

To open chart settings, click to the right of the chart type above the wizard slot fields. You'll see a dialog window with the following controls:

After managing the controls, click Apply to see the results on the chart preview.

To open slot settings, click in a row with the slot name.

Columns:

For each cell column, you have a toggle switch with the following positions:

• Auto - sets the column width automatically.

• % - set the column width as the percentage from the total table width. Specify it as a number in the text field to the right of the toggle switch.

• px - set the column width as the number of pixels. You can specify this number in the text field to the right of the toggle switch.

  Tip

  The % and px options enable word wrap for the columns to which they're applied.

• Use a hierarchy to add an additional nesting layer of data in your table.

• To embed links into your table cells, use the URL function.

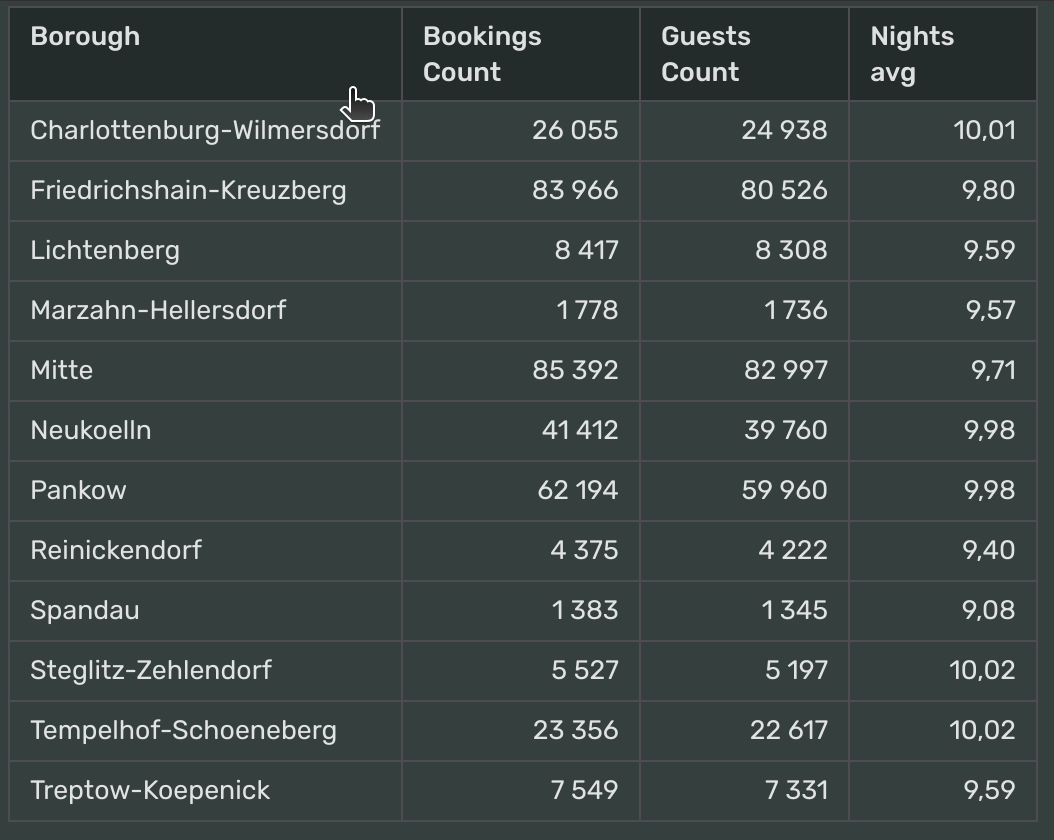

  • Click the column header to sort the table by its value:



• If you have a column with a lot of text, enable word wrap for it:

  1. Click in the Columns slot.

  2. For the column with a lot of text, select % or px and specify the desired width accordingly.

  3. Click Apply.
